2022 Most Popular Prepaid RS485 Electricity Meter Kw Smart IC card reader write

Name: 2022 Most Popular Prepaid RS485 Electricity Meter Kw Smart IC card reader write
Brand: GOMELONG
Price: 13.50 USD

China 2022 Most Popular Prepaid RS485 Electricity Meter Kw Smart IC card reader write factory

Place of Origin : Other Country

Brand Name : GOMELONG

Model Number : DDSY

Display Type : Analog and Digital

Phase : Single Phase

Measuring Energy Range : 0-999999.9kWh

Accuracy Class : 1or2

Output Voltage : 220V.230V.240V

Operating Temperature : 0-40

Dimensions : 127*65*8.5mm

Name : electricity smart energy meter

Type : Prepayment Electric Meter

Display : LCD Display

Rated Current : 5(100)A

Color : White

Frequency : 50HZ/60HZ

communication : infrared

protocol : MoDBUS

OEM : Allowed

Packaging Details : export strong packing

Port : Ningbo

Supply Ability : 10000 Piece/Pieces per Month

Price : $13.50 - $15.50/Pieces

Contact Now

2018 Most Popular Prepaid RS485 Electricity Meter Kw Smart IC card reader write

Product Overviews

2022 Most Popular Prepaid RS485 Electricity Meter Kw Smart IC card reader write

Application

Model DTSY5558 three phase electronic prepayment active energy meter is a kind of active energy meter which purchase electricity by IC card, electric energy measuring, load control and using electricity management. Th e meter completely accord with relevant technical requirements of class 1 three phase active energy meter stipulated in international standard IEC 62053-21. It can accurately and directly measure 50Hz or 60Hz active energy consumption from three phase four wire AC electricity net, it is used for installed in meter box indoor or outdoor. This meter has LED monitors shows power. It has following features: Good reliability, light weight, specious nice appearance, convenient installation, etc.

Features

• Payment use ic card prepaid automatic power-off when low credit.

• Power–off alarm when electricity shortage, remind users to buy electricity timely

• Register display the total power consumption

• Overload alarm

Technical Parameters

Specification		DDSY5558
Accuracy	Active	Class1.0
Accuracy	Reactive
Voltage	Rated	110/120/220/230/240V
	Range	0.9Un~1.1Un
	Limit	0.8Un~1.2Un
Frequency		50/60Hz
Current	Range	1.5(6), 5(30), 10(50), 15(90), 20(100), 5(40), 5(100)A
Starting Current		0.4%Ib
Constant	Active	1600imp/kWh
Constant	Reactive	\
Display	Type	LCD
Display	Digit	6+1
Power Consumption	Voltage Circuit	≤0.8W,10VA
Power Consumption	Current Circuit	≤4VA
Communication	Interface	Optical/Infrared/RS485 (Optional)
Communication	Protocol	MODBUS,DLT/645,IEC1107
Temperature	Working Temperature	-45℃~+55℃
Temperature	Storage Temperature	-40℃~+70℃
Humidity		≤90%
Protection		IP54

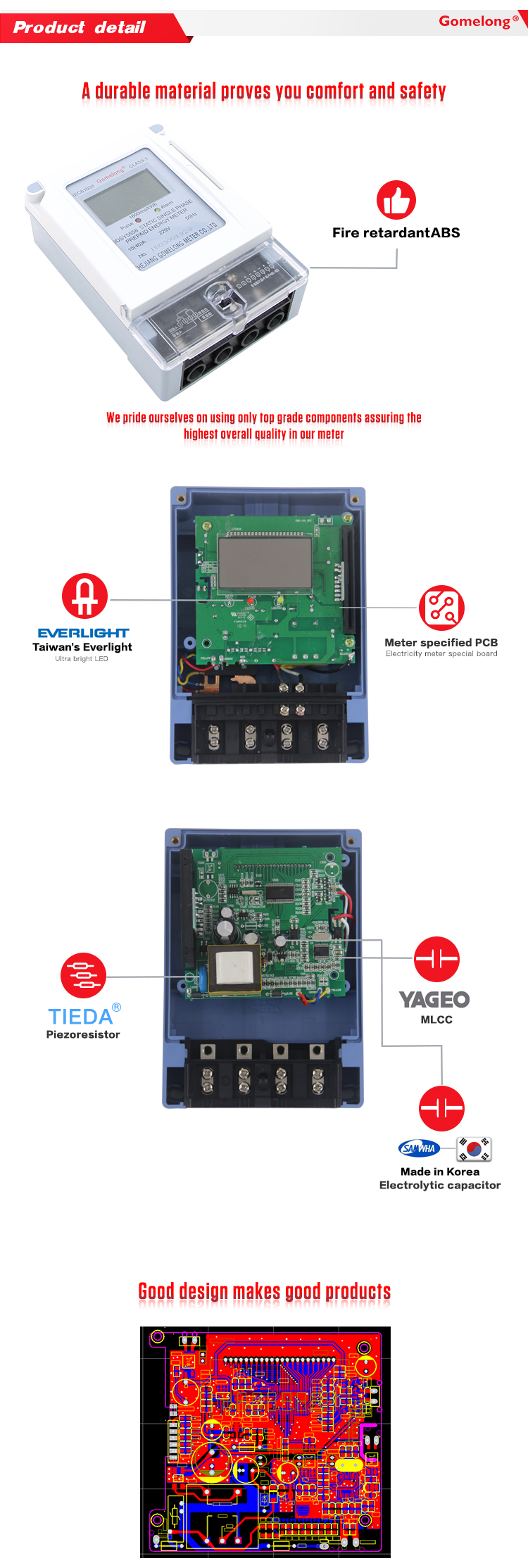

2022 Most Popular Prepaid RS485 Electricity Meter Kw Smart IC card reader write Images
